- Place of Origin: SHANXI, CHIAN
- Brand Name: ELADE
- Model Number: MMO Tubular Anode
Shaanxi Elade New Material Technology Co.,Ltd is one of the leading China mmo tubular anode manufacturers, and with professional factory we are able to provide you cheap mmo tubular anode, tubular anode, mmo titanium tubular anode with good quality. Welcome to wholesale products from us.

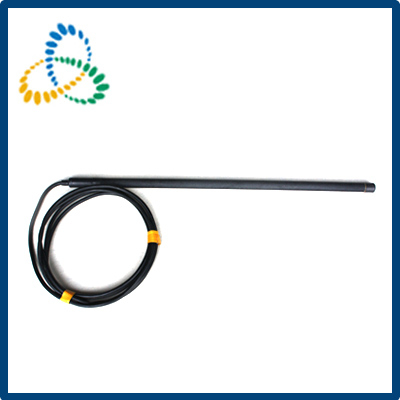

Tubular anode is used for the soil, fresh water, sea water and mud, or the other natural environments, it could be used alone or make it a string. Various tubular anode available as requested.
Outer Diameter (mm)：19
Length (mm)：1200
Output Current (A/m)：7.2
Expected life (year)：20
Titanium Substrate:
Meet ASTM standard B338 Grade 1 or Grade2.
Tubular Anode Parameter:
Outer Diameter(mm) | Length(mm) | Output Current(A/M) | Expected Life(a) |
19 | 1200 | 7.2 | 20 |
25 | 500 | 4 | 20 |
25 | 1000 | 8 | 20 |
25 | 1200 | 10 | 20 |
25 | 1500 | 12 | 20 |
32 | 1200 | 12 | 20 |
Tubular Anode Applications:
◆ The tubular anode can be made singly or in strings.
◆ Suit for all natural environments, such as: soil, fresh water, sea water, mud.
◆ The current output depends on the anode dimension, substrate, applications and design lifetime.
Advantages:
◆ High current output and low electrical resistance.
◆ Using tubular anodes can save 15-35% of install cost comparing to use other anodes.
◆ Anode-cable assemblies are easy to handle, transport and install because of their unique flexibility.
